PT100 RTD Sensor 3 Wire Stainless Steel Temperature Probe Fast Reaction For Gas Oven Kitchen PT-RTD Series

Product Categories
Hefei XIXI Electronics Co., ltd
Contact Now

PT100 RTD Sensor 3 Wire Stainless Steel Temperature Probe Fast Reaction For Gas Oven Kitchen PT-RTD Series

Brand Name : XIXITRONICS

Model Number : PT-RTD Series

Certification : RoHS , REACH

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T

Supply Ability : 1 Million Pieces Per Year

Delivery Time : 7-12 work days

Packaging Details : 10pcs / bundle, 30pcs / bundle

R 0℃ : 100Ω, 500Ω, 1000Ω,

Accuracy : 1/3 class DIN-C, class A, class B

Temperature Coefficient : TCR=3850ppm/K

Insulation Voltage : 1800VAC, 2sec

Insulation Resistance : 500VDC ≥100MΩ

Wire : Φ4.5mm, Silicon Round Jacket 300℃

Communication Mode : 2 Wire、3 Wire、4 Wire System

Probe : Sus 6*80mm

Contact Now

PT100 RTD Sensor 3 Wire Stainless Steel Temperature Probe Fast Reaction for Gas Oven, Kitchen Appliances PT-RTD Series



Features:
■ A platinum resistor is built into the various housing
■ Proven long term Stability and Reliability
■ Interchangeability and High Sensitivity with High precision

■ Product is compatible with RoHS and REACH certifications
■ SS304 tube is compatible with FDA and LFGB certifications


Applications:
■ White goods, HVAC, and Food sectors
■ Automotive and Medical
■ Marine, Energy management and Industrial equipment

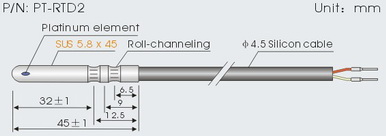

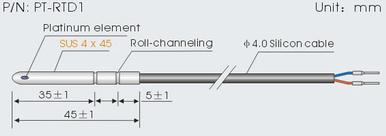

Dimensions:

PT100 RTD Sensor 3 Wire Stainless Steel Temperature Probe Fast Reaction For Gas Oven Kitchen PT-RTD Series     PT100 RTD Sensor 3 Wire Stainless Steel Temperature Probe Fast Reaction For Gas Oven Kitchen PT-RTD Series

Product specification:



Specification

(according to IEC 751)

R 0℃
(Ω)

Tolerance

Long-term stability

Temperature coefficient

operation temperature range (℃)
XXPT-RTD -100-B
100
 DIN EN 60751, class B


max. R0-drift 0.04% after 1000 h at 500°C


TCR = 3850 ppm/K
 -70～500
XXPT-RTD -100-A
100
 DIN EN 60751, class A -50～300
XXPT-RTD -100-C
100
 DIN EN 60751, class 1/3 DIN 0～150
XXPT-RTD -500-B
500
 DIN EN 60751, class B -70～500
XXPT-RTD -1000-B
1000
 DIN EN 60751, class B -70～500
XXPT-RTD -1000-A
1000
 DIN EN 60751, class A -50～300
XXPT-RTD -1000-C 1000 DIN EN 60751, class 1/3 DIN 0～150
